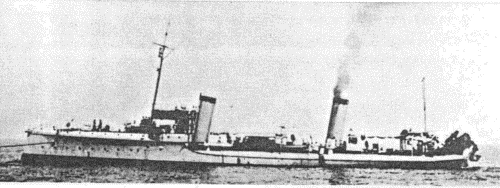

Magnet 1917
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Magnet | 576 | Schichau, Elbing, Germany | 1895 | 31.3.1896 | 12/1896 | to Italy 1920 |
|
Displacement normal, t |
485 |
|
Displacement full, t |
510 |
|
Length, m |
67.5 pp |
|
Breadth, m |
8.20 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 Schulz-Thornycroft boilers |
|
Power, h. p. |
6000 |
|
Max speed, kts |
26 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
4000(10) |
|
Armament |
6 x 1 - 47/40 SFK L/44 H, 2 x 1 - 450 TT |
|
Complement |
80 |
Project history: Largest of Austrian "torpedo ships".
Modernizations: 1916: - 2 x 1 - 47/40; + 2 x 1 - 66/42 SFK L/45, 1 x 1 - 450 TT
Naval service: No significant events.
Magnet 1916
