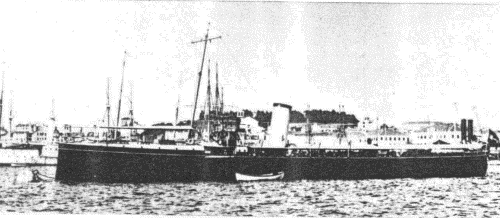

Satellit 1893
Satellit 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Satellit | 482 | Schichau, Elbing, Germany | 1/1892 | 21.9.1892 | 6/1893 | to France 1920 |
|
Displacement normal, t |
540 |
|
Displacement full, t |
616 |
|
Length, m |
68.9 oa 67.2 pp |
|
Breadth, m |
8.10 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 Schulz-Thornycroft boilers |
|
Power, h. p. |
4000 |
|
Max speed, kts |
23 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
4000(10) |
|
Armament |
1 x 1 - 66/37 SFK L/42 S, 6 x 1 - 47/40 SFK L/44 H, 1 - 450 TT (bow), 1 x 1 - 450 TT |
|
Complement |
86 |
Project history: Officially classified as "torpedo ship".
Modernizations: 1913: boilers were replaced by 3 Yarrow (with 3 funnels) (4000hp, 21.9kts, 2000(10)nm); + mines
Naval service: No significant events.
Satellit 1904

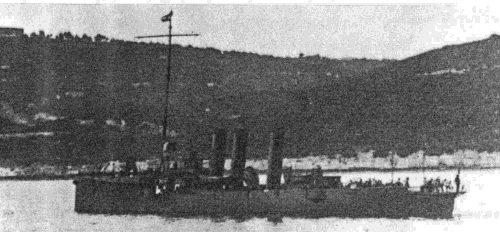

Satellit 1914
Many thanks to Wolfgang Stöhr for additional information on this page.
