nearly sister-ship Planet 1890
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Trabant | 254 | STT, San Rocco | 1889 | 21.5.1890 | 10/1890 | minesweeper 1915, to Italy 1920 |
|
Displacement normal, t |
490 |
|
Displacement full, t |
540 |
|
Length, m |
67.0 wl 65.5 pp |
|
Breadth, m |
8.00 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 locomotive boilers |
|
Power, h. p. |
3800 |
|
Max speed, kts |
20.1 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
2300(10) |
|
Armament |
2 x 1 - 66/37 SFK L/42 S, 8 x 1 - 47/40 SFK L/44 H, 1 - 450 TT (bow), 1 x 1 - 450 TT |
|
Complement |
84 |
Project history: Officially classified as "torpedo ship". Austrian development of Planet.
Modernizations: 1915: + mechanical minesweeping gear
Naval service: No significant events.

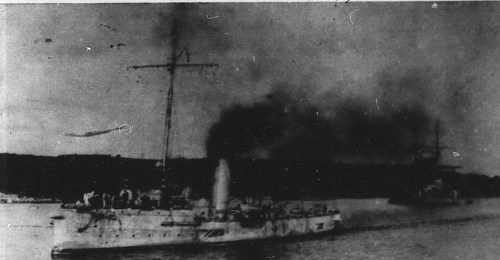

Trabant 1916
Many thanks to Wolfgang Stöhr for additional information on this page.
