similar Elster 1888
|
Names |
XXXIV - XXXIX, 1910- 44 - 49 |
|
Builders |
Schichau, Elbing, Germany: XXXIV Marinearsenal Pola: XXXV - XXXIX |
|
Completed |
1889: XXXIV 1891: XXXV - XXXIX |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1911: 44, 46 - 48 1913: 49 8/1914: 45 |
|
Displacement normal, t |
64 |
|
Displacement full, t |
|
|
Length, m |
36.9 wl |
|
Breadth, m |
4.80 |
|
Draught, m |
1.90 |
|
No of shafts |
1 |
|
Machinery |
1 VC, 1 locomotive boiler |
|
Power, h. p. |
750 |
|
Max speed, kts |
20.3 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 37/20 SFK L/23 H, 1 - 356 TT (bow), 1 x 1 - 356 TT |
|
Complement |
16 |
Project history: II class, D-type.
Modernizations: 1907, XXXVII, XXXVIII; 1908, XXXIV-XXXVI, XXXIX: - 1 x 1 - 356 TT
Naval service: No significant events.

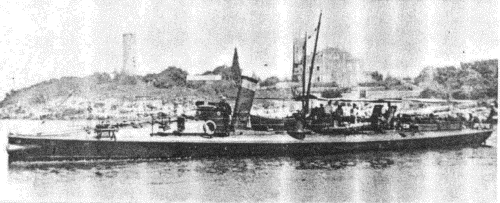

XXXIV
© Ivan Gogin, 2014
