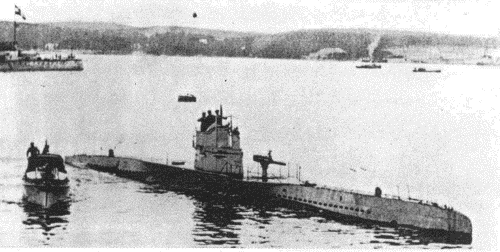

U47 1917
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| U43 (ex-UB43) | 245 | Weser, Bremen, Germany | 1915 | 8.4.1916 | 4.1916 // 7.1917 | to France 1920 | |
| U47 (ex-UB47) | 249 | Weser, Bremen, Germany | 1915 | 17.6.1916 | 7.1916 // 7.1917 | to France 1920 |
|
Displacement standard, t |
|
|
Displacement normal, t |
272 / 305 |
|
Length, m |
36.9 |
|
Breadth, m |
4.37 |
|
Draught, m |
3.68 |
|
No of shafts |
2 |
|
Machinery |
2 Daimler diesels / 2 SSW electric motors |
|
Power, h. p. |
284 / 280 |
|
Max speed, kts |
8.8 / 6.2 |
|
Fuel, t |
diesel oil 27 |
|
Endurance, nm(kts) |
6940(5) / 45(4) |
|
Armament |
1 x 1 - 88/27 TK L/30 C/08, 2 - 500 TT (bow, 4) |
|
Complement |
23 |
|
Diving depth operational, m |
50 |
Project history: U43 and U47 were both built in Germany by AG Weser in 1916, transferred to Pola by railway and commissioned as the German UB43 and UB47; after one year's service both were decommissioned on 21 June 1917 and sold in a worn-out condition to the Austro-Hungarian Navy which commissioned them as U43 and U47 on 30 July 1917.
Modernizations: None.
Naval service: After active service they were ceded as war reparations to France and scrapped in 1920.
U43 1917
Many thanks to Wolfgang Stöhr for additional information on this page.
