Names |
S301 - 306 |
|
Builders |
Turkan SY: S301-306 |
|
Commissioned |
2014: S301, 302 2015: S303-306 |
|
Losses |
none |
|
Transfers |
None |
|
Discarding |
in service (2020): S301-306 |
|
Displacement standard, t |
|
|
Displacement full, t |
95 |
|
Length, m |
32.7 |
|
Breadth, m |
6.40 |
|
Draught, m |
1.25 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V4000 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
1000(12) |
|
Armament |
1 x 4 Spike SSM (4 Spike-NLOS), 1 x 1 - 23/82 Typhoon, 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | radar, Toplite e/o system |
|
Complement |
10 |
Project history: Coast Guard. Domestic built boats, Israeli Shaldag V design.
Modernizations: None.
Naval service: No significant events.

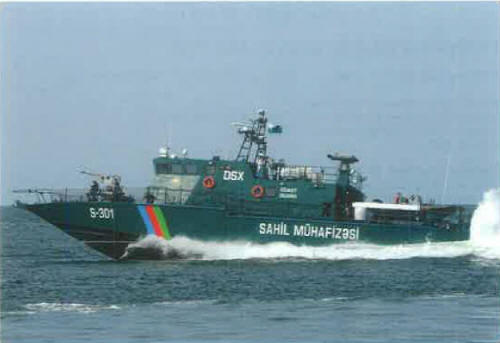

S301 2014
