M324 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| (ex-ÐÒ-136 [RT-136]) | M327 | 150 | Sredne-Nevskiy, Pontonnyy, USSR | 1984 // 3.7.1992 | in service (2020) | ||
| (ex-ÐÒ-473 [RT-473]) | M328 | 138 | Sredne-Nevskiy, Pontonnyy, USSR | 1979 // 3.7.1992 | in service (2020) |
|
Displacement standard, t |
88 |
|
Displacement full, t |
91 |
|
Length, m |
26.1 |
|
Breadth, m |
5.40 |
|
Draught, m |
1.38 |
|
No of shafts |
2 |
|
Machinery |
2 3D12 diesels |
|
Power, h. p. |
600 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
300(10) |
|
Armament |
1 x 2 - 25/82 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or IU-2 USV or MT-3U or VKT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear or 1 pr. 103 towed mine clearing line chargers carrier |
|
Electronic equipment |
Kivach radar, MG-7 Braslet sonar |
|
Complement |
10 |
Project history: Former Soviet project 1258 inshore minesweepers.
Modernizations: None.
Naval service: No significant events.

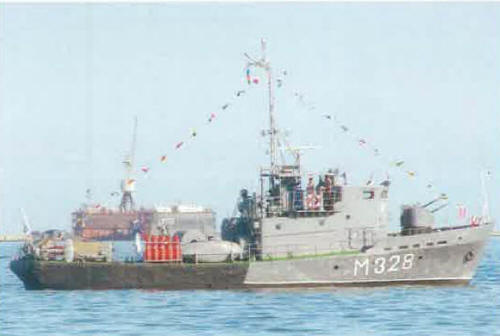

M328 2008
