Boyacá 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Boyacá (ex-Hartley) | DE16, 1981- D07 | 512 | New York SB, Camden, USA | 31.10.1955 | 26.1.1957 | 30.7.1957 // 8.7.1972 | stricken 1994 |
|
Displacement standard, t |
1314 |
|
Displacement full, t |
1877 |
|
Length, m |
93.9 wl 96.0 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
3.60 |
|
No of shafts |
1 |
|
Machinery |
1 set De Laval geared steam turbines, 2 Foster Wheeler boilers |
|
Power, h. p. |
20000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 6000(12) |
|
Armament |
1 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT, helicopter deck |
|
Electronic equipment |
SPS-10, SPS-6C, SPG-34 radars, SQS-23 sonar, WLR-1 ECM suite |
|
Complement |
173 |
Project history: Former USN Dealey class destroyer escort.
Modernizations: None.
Naval service: No significant events.

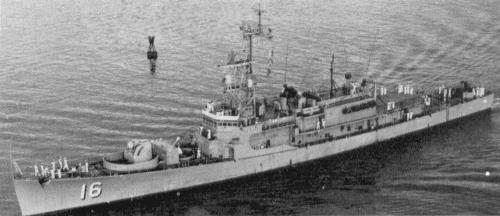

Boyacá 1974
