Nariño 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Nariño (ex-안양 [Anyang]) | CM55 | Daewoo SME, Okpo, South Korea | 15.6.1983 | 21.12.1983 // 2013 | in service (2019) |
|
Displacement standard, t |
800 |
|
Displacement full, t |
1093 |
|
Length, m |
78.5 |
|
Breadth, m |
10.0 |
|
Draught, m |
2.60 mean hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 General Electric LM-2500 gas turbine / 2 MTU 12V956 TB82 diesels |
|
Power, h. p. |
27800 / 6240 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel / gas turbine oil |
| Endurance, nm(kts) | 4000(15) |
|
Armament |
2 x 2 - 40/60 Mk 1 Mod.2, 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 324 Mk 32 TT, 2 DCR(12) |
|
Electronic equipment |
SPS-64(v), WM-28 radars, LIOD e/o director, PHS-32 sonar, ULQ-12K ECM suite, 4x Protean decoy RL, SEWACO CCS |
|
Complement |
95 |
Project history: Former South Korean Dong Hae class corvette, rearmed after transfer. Commissioned 31.7.2014.
Modernizations: None.
Naval service: No significant events.

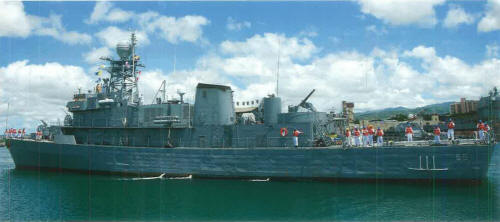

Nariño 2014
