Golfo de Morrosquillo 2000
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Golfo de Morrosquillo (ex-Shenandoah, ex-LCU1516) | LD246 | 668 | Avondale Marine, Westwego, USA | 1954 // 10.1990 | stricken 2016 | ||
| Uruba (ex-Lorraine, ex-LCU1522) | LD247 | 674 | Avondale Marine, Westwego, USA | 1954 // 10.1990 | stricken 2000 | ||
| Bahía Honda (ex-Carolina, ex-LCU1543) | LD248 | 695 | Avondale Marine, Westwego, USA | 1954 // 10.1990 | in service (2019) | ||
| Bahía Portrete (ex-Chattanooga, ex-LCU1583) | LD249 | USA | 1954 // 10.1990 | in service (2019) | |||
| Bahía Solano (ex-Viper, ex-LCU1591) | LD251 | USA | 1954 // 1992 | in service (2019) | |||
| Bahía Cupica (ex-Fort Reno, ex-LCU1592) | LD252 | USA | 1954 // 1992 | in service (2019) | |||
| Bahía Utria (ex-...) | LD253 | USA | 1954 // 1992 | in service (2019) | |||
| Bahía Málaga (ex-...) | LD254 | USA | 1954 // 1992 | stricken 2016 |
|
Displacement standard, t |
180 |
|
Displacement full, t |
347 |
|
Length, m |
32.0 wl 35.1 oa |
|
Breadth, m |
10.4 |
|
Draught, m |
at landing: 0.84 fore 1.60 aft |
|
No of shafts |
3 |
|
Machinery |
3 Gray Marine 64YTL diesels |
|
Power, h. p. |
675 |
|
Max speed, kts |
8 |
|
Fuel, t |
diesel oil 11 |
| Endurance, nm(kts) |
1200(6) |
|
Armament |
2 x 1 - 12.7/90 |
| Military load |
150 t of cargo or 300 troops |
| Complement | 11 |
Project history: Former USN LCU1466-class. Further development of LCT(5) in dimensions of LCT(6). Had 15.8x9.0m cargo deck and 4.3m-wide bow ramp.
Modernizations:
None.Naval service: No significant events.

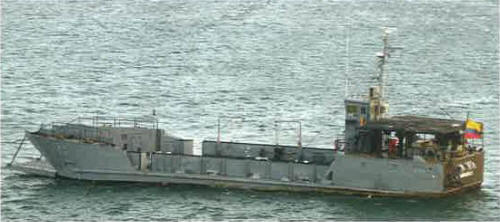

Golfo de Morrosquillo 2009
© Ivan Gogin, 2019
