Golfo de Tribuga 2015 (from www.shipbucket.com)
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Golfo de Tribuga | LD240 | COTECMAR, Cartagena | 3.5.2014 | in service (2019) | |||
| Golfo de Urabá | LD241 | COTECMAR, Cartagena | 10.6.2015 | in service (2019) | |||
| Golfo de Morrosquillo | LD242 | COTECMAR, Cartagena | 22.7.2016 | 2017 | in service (2019) | ||
| Bahía Málaga | LD243 | COTECMAR, Cartagena | 22.7.2016 | 2017 | in service (2019) | ||
| Bahía Colombia | LD244 | COTECMAR, Cartagena | 2018 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
660 |
|
Length, m |
45.8 |
|
Breadth, m |
11.0 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar C148 diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
none |
| Military load |
210 t cargo |
| Electronic equipment | Furuno radar |
| Complement | 12 |
Project history: Indigenious design, replacement for ex-USN craft. 3 more are planed to be built.
Modernizations:
None.Naval service: No significant events.

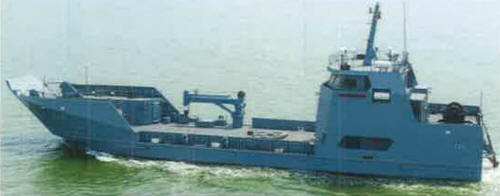

Golfo de Tribuga 2014
© Ivan Gogin, 2019
