| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Carabobo | C A de St. Nazaire-Penhoët, Rouen, France | 8.8.1925 | 1925 | stricken 1961 | |||
| Boyacá, 1933/37- Junín | C A de St. Nazaire-Penhoët, Rouen, France | 8.7.1925 | 1925 | stricken 1961 | |||
| Pichincha | C A de St. Nazaire-Penhoët, Rouen, France | 5.9.1925 | 1925 | stricken 1961 |
|
Displacement standard, t |
120 |
|
Displacement full, t |
|
|
Length, m |
33.0 |
|
Breadth, m |
6.00 |
|
Draught, m |
2.50 |
|
No of shafts |
1 |
|
Machinery |
1 VTE, 1 Thornycroft boiler |
|
Power, h. p. |
300 |
|
Max speed, kts |
13 |
|
Fuel, t |
oil 50 |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 75/35 M1915-18, 1 x 1 - 37/50 M1925, 2 x 1 - 8.80 |
|
Complement |
37 |
Project history: Patrol coast defence ships.
Modernizations: 1942-1945, all: - 1 x 1 - 37/50; + 1 x 1 - 20/70 Mk 4
Naval service: Pichincha served on Amazon and Putumayo.

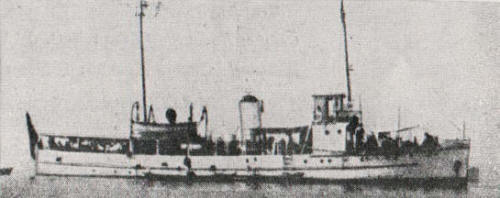

Pichincha 1934

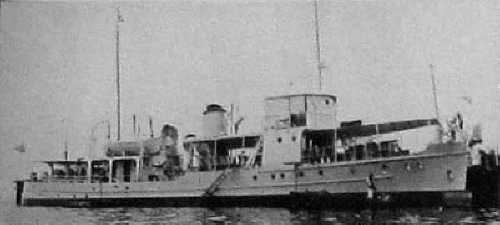

Junín 1938
