Patria 1914
Patria 1952
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Patria | Cramp, Philadelphia, USA | 10.8.1911 | 1911 | discarded 1955 |
|
Displacement normal, t |
1100 |
|
Displacement full, t |
1200 |
|
Length, m |
61.0 pp |
|
Breadth, m |
11.0 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, Babcock boilers |
|
Power, h. p. |
4000 |
|
Max speed, kts |
16 |
|
Fuel, t |
coal 150 |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 57/40 Mk I/II, 4 x 1 - 47/40 Mk I/II, 4 x 1 - 37/40 Mk II/III |
| Complement | 115 |
Project history: Two-masted two-funneled seaworthy training ship ordered under the 1910 programme, actually represented the project off well proved during the Spanish-American war Machias class gunboat, adapted under Cuban requirements.
Modernizations: 1917: - 4 x 1 - 37/40; + 2 x 1 - 57/40 Mk I/II
1942: boilers were converted to oil-firing; + 2 x 1 - 76/50 Mk 3.5.6, 1 x 1 - 76/52 Mk 10, 2 DCT
1945: - 2 DCT
Naval service: No significant events.

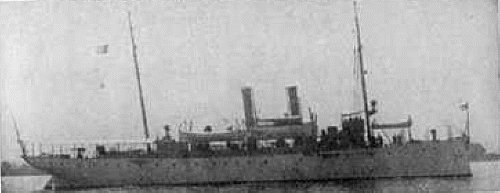

Patria 1930s

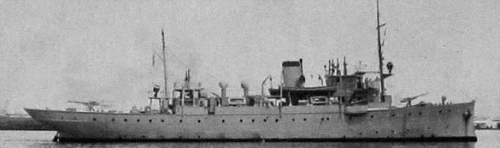

Patria 1952
