OMm35 1938
|
Names |
OMm35 OMm36 |
|
Builders |
Škoda, Komárno: OMm35, 36 |
|
Commissioned |
10/1938: OMm35 |
|
Losses |
OMm35 (4/1939 German FM1); OMm36 (incomplete to Germany 1939 as FM2) |
|
Transfers |
none |
|
Discarding |
none |
|
Displacement standard, t |
|
|
Displacement full, t |
60 |
|
Length, m |
31.0 |
|
Breadth, m |
4.16 |
|
Draught, m |
0.92 max |
|
No of shafts |
2 |
|
Machinery |
2 Sulzer diesels |
|
Power, h. p. |
900 |
|
Max speed, kts |
|
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
| Armour, mm | turret: 48, CT: 6 |
|
Armament |
1 x 2 - 7.9/90, 2 x 1 - 7.9/90, 18 - 22 mines |
|
Complement |
6 |
Project history: Armoured minelaying boat, first combat boat of Czechoslovakia, specially designed for military service.
Ship protection: Only fwd MG turret was enough protected.
Modernizations: None.
Naval service: No significant events.

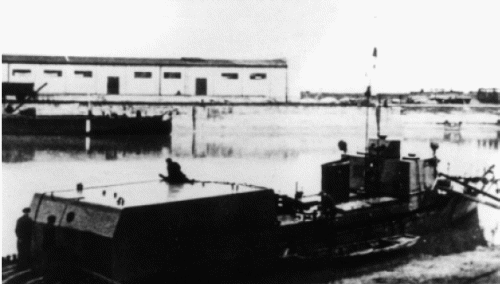

OMm35 1939
