Isla Fernandina 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 6 de Diciembre, 2007- Isla Fernandina | LG39 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) | |||
| 11 de Noviembre, 2007- Isla Española | LG40 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) | |||
| 11 de Abril, 2007- Isla San Salvador | LG41 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) |
|
Displacement standard, t |
325 |
|
Displacement full, t |
|
|
Length, m |
40.0 pp 45.0 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
2.55 |
|
No of shafts |
3 |
|
Machinery |
2 MTU 16V4000 M90 diesels + 1 MTU 12V4000 M90 diesel |
|
Power, h. p. |
7400+2780=10180 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(12) |
|
Armament |
4 x 1 - 7.6/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
27 |
Project history: FBM Babcock Marine design, derived from the Protector class. 5.2m-long fast RIB can be launched via stern ramp.
Modernizations: None.
Naval service: No significant events.

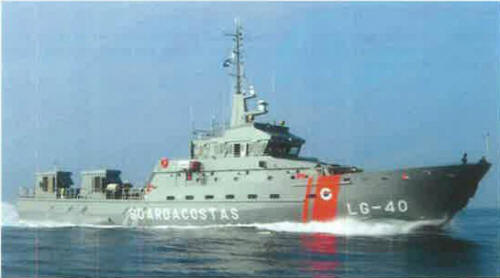

Isla Española 2006
