Quito 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Quito | LM21 | Lürssen, Vegesack, West Germany | 20.11.1975 | 13.7.1976 | in service (2019) | ||
| Guayaquil | LM23 | Lürssen, Vegesack, West Germany | 5.4.1976 | 22.12.1977 | in service (2019) | ||
| Cuenca | LM24 | Lürssen, Vegesack, West Germany | 16.12.1976 | 17.7.1977 | in service (2019) |
|
Displacement standard, t |
250 |
|
Displacement full, t |
265 |
|
Length, m |
44.3 pp 47.0 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.40 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil 39 |
| Endurance, nm(kts) | 1850(16) |
|
Armament |
2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 35/90 GDM-A |
|
Electronic equipment |
Decca TM1226, Triton G, Pollux radars, DR-2000S ECM suite |
|
Complement |
34 |
Project history: Lürssen FPB45 class.
Modernizations: 1994-1995, all: diesels were replaced by 4 MTU 16V396 (14000hp, 40kts)
2012-2016, all: - Decca TM1226 radar, DR-2000S ECM suite; + Furuno 2115 radar, NS-9010 ECM suite.
Naval service: No significant events.

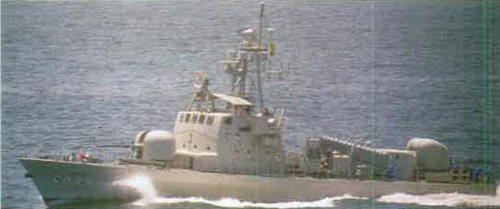

Cuenca 2000
