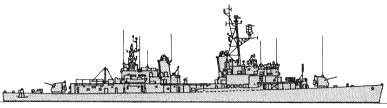

Presidente Eloy Alfaro 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Presidente Eloy Alfaro (ex-Holder) | DD01 | Consolidated, Orange, USA | 23.4.1945 | 25.8.1945 | 18.5.1946 // 1.9.1978 | stricken 1991 |
|
Displacement standard, t |
2425 |
|
Displacement full, t |
3500 |
|
Length, m |
116.6 wl 119.1 oa |
|
Breadth, m |
12.4 |
|
Draught, m |
4.40 hull 5.80 max |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil 650 |
| Endurance, nm(kts) | 4800(15) |
|
Armament |
2 x 2 - 127/38 Mk 38, 2 x 3 - 324 TT, 1 helicopter |
|
Electronic equipment |
LN-66, SPS-10, SPS-40, Mk 25 radars, SQS-23 sonar, WLR-1 ECM suite |
|
Complement |
270 |
Project history: Former USN Gearing class destroyer, reconstructed under FRAM I programme.
Modernizations: None.
Naval service: No significant events.

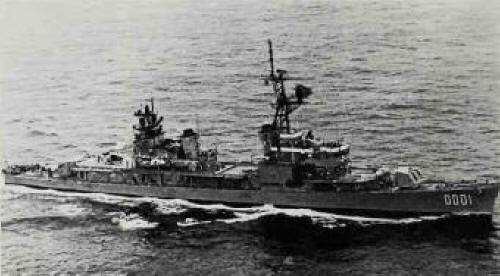

Presidente Eloy Alfaro 1981
© Ivan Gogin, 2019
