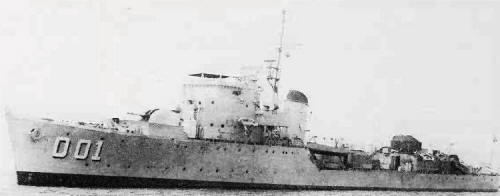

Presidente Alfaro 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Presidente Alfaro (ex-Quantock) | D01, 1970- D2 | Scotts, Greenock, UK | 7.1939 | 22.4.1940 | 2.1941 // 18.10.1954 | discarded 1978 | |
| Presidente Velasco Ibarra (ex-Meynell) | D02, 1970- D3 | Swan Hunter, Wallsend, UK | 8.1939 | 7.6.1940 | 12.1940 // 18.10.1954 | discarded 1978 |
|
Displacement standard, t |
1000 |
|
Displacement full, t |
1340, finally up to 1420 - 1450 |
|
Length, m |
80.5 pp 85.3 oa |
|
Breadth, m |
8.84 |
|
Draught, m |
3.81 deep load |
|
No of shafts |
2 |
|
Machinery |
2 sets Parsons geared steam turbines, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
19000 |
|
Max speed, kts |
28 |
|
Fuel, t |
oil 240 |
|
Endurance, nm(kts) |
2500(20) |
|
Armament |
2 x 2 - 102/45 Mk 19, 1 x 4 - 40/39 Mk 7, 2 x 1 - 20/70 Mk 7, 2 DCT, 1 DCR (50) |
| Electronic equipment | type 271, type 285, type 286 radars, type 128 sonar |
|
Complement |
147 |
Project history: Former British 'Hunt ' class escort destroyers, with reduced light guns.
Modernizations: None.
Naval service: No significant events.
Presidente Alfaro 1970
