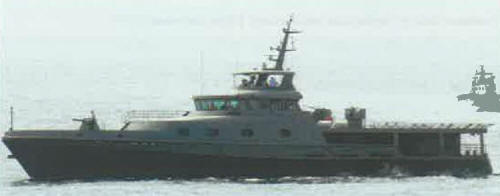

Cabo San Juan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cabo San Juan | P400 | More, Feodosiya, Ukraine | 2007 | in service (2020) | |||
| Estuario de Muni | More, Feodosiya, Ukraine | 2008 | in service (2020) |
|
Displacement standard, t |
320 |
|
Displacement full, t |
|
|
Length, m |
48.9 |
|
Breadth, m |
9.00 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516C diesels |
|
Power, h. p. |
6400 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(14) |
|
Armament |
1 x 2 - 30/71 AK-230, 2 x 2 - 25/82 2M-3M, helicopter deck |
|
Sensors |
2x nav. radars |
|
Complement |
30 |
Project history: Ukrainian-designed offshore patrol vessels, project PV50M. Fitted with a small crane for RIB launch and recovery.
Modernizations: None.
Naval service: No significant events.
Estuario del Muni 2008
