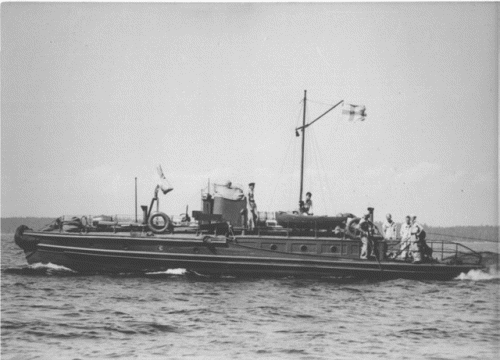

AF1 1918
|
Names |
AF1 - 5 (ex-MT ¹... [MT No...]) |
|
Builders |
Andre Rozenkvist, Abo, Russia or Botnia, Abo, Russia: AF1-5 |
|
Completed |
1917 - 1918 // 1918: AF1 - 5 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
before 1935: AF1, 3 - 5 before 1945: AF2 |
|
Displacement normal, t |
25 |
|
Displacement full, t |
|
|
Length, m |
15.3 |
|
Breadth, m |
3.50 |
|
Draught, m |
? |
|
No of shafts |
1 |
|
Machinery |
1 gasoline engine |
|
Power, h. p. |
50 |
|
Max speed, kts |
9 |
|
Fuel, t |
gasoline |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 7.6/94, mechanical minesweeping gear |
|
Complement |
8 |
Project history: Ex-Russian minesweeping boats.
Modernizations: None.
Naval service: No significant events.
AF2
