S4 1932
|
Names |
S2 - S5 |
|
Builders |
Lürssen, Vegesack: S2 - 5 |
|
Commissioned |
4-7/1932: S2 - 5 |
|
Losses |
none |
|
Transfers |
Spain, 11.1936: S2, 4 (Falange, Requeté); 3.1937: S3 (Oviedo); 2.1939: S5 (Toledo) |
|
Discarding |
none |
|
Displacement standard, t |
46.5 |
|
Displacement full, t |
58 |
|
Length, m |
27.9 |
|
Breadth, m |
4.46 |
|
Draught, m |
1.45 |
|
No of shafts |
3 |
|
Machinery |
3 Daimler-Benz BEZ petrol engines / 1 Maybach S5 petrol engine for cruising |
|
Power, h. p. |
3000 / 100 |
|
Max speed, kts |
33.8 / 6 |
|
Fuel, t |
petrol 7.5 |
| Endurance, nm(kts) | 582(22) |
|
Armament |
1 x 1 - 20/65 C/30, 2 - 533 TT |
| Complement | 12 - 13 |
Project history: Torpedo motorboats (Schnellboote) were the development of successful prototype created by F. Lürssen in 1929. General characteristic lines for all series were round-bilge hull with small deadrise, triple-shaft diesel machinery, presence of two auxiliary rudders for creation of "Lürssen effect" (fitting of rudders under an angle to centreline for speed increase) and a bow arrangement of two TTs. Composite hull included light alloy framing, wooden planking and steel engine seating. S2 type boats were appeared unsuccessful because of their petrol engines.
Modernizations: None.
Naval service: S3 and S5 were badly damaged at Cadiz during unloading from cargo vessel and never commissioned by Spanish navy.

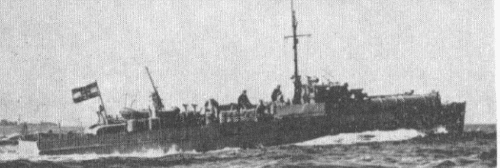

S4
