AN2 1960
|
Names |
AN1, 2 45 boats from 542-001 - 542-059 two were named in 2000s: 542-051 Ercsi 542-054 Baja |
|
Builders |
Balatoni Hajozasi, Balatonfüred: AN2, 3, 542-001 - 542-059 |
|
Commissioned |
1948: AN1, 2 1953-1956: 542-001 - 542-059 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1980s: AN1, 2 2001: 43 boats from 542-001 - 542-050, 542-052, 542-059 in service (2019): 542-051 Ercsi, 542-054 Baja |
|
Displacement standard, t |
|
|
Displacement full, t |
12 |
|
Length, m |
13.4 |
|
Breadth, m |
3.80 |
|
Draught, m |
0.60 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
220 |
|
Max speed, kts |
9 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 12.7/79 or 1 x 1 - 12.7/79, 2 - 4 ground mines or KRAM minesweeping gear or mine disposal charge lines |
|
Complement |
7 |
Project history: Aluminium-hulled boats. Two of built during WWII were salved in 1948 and recommissioned with totally reconstructed superstructures. A series based on this type were built commencing in 1953.
Modernizations: 2005, Ercsi, Baja: diesels were replaced by 2 Volvo Penta (380hp, 19kts), - (1 x 2 - 12.7/79 or 1 x 1 - 12.7/79); + 1 x 1 - 12.7/79
Naval service: No significant events.

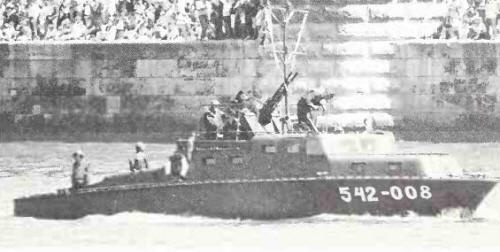

542-008 1987

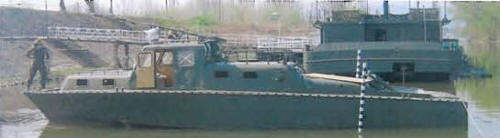

2007
