Týr 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ægir | Ålborg Vaerft, Denmark | 5.1967 | 6/1968 | in service (2019) | |||
| Týr | Dannebrog Vaerft, Århus, Denmark | 10.10.1974 | 15.3.1975 | in service (2019) |
|
Displacement standard, t |
1150 |
|
Displacement full, t |
1500 |
|
Length, m |
Ægir: 62.2 pp 69.8 oa Týr: 62.2 pp 70.9 oa |
|
Breadth, m |
10.0 |
|
Draught, m |
5.02 |
|
No of shafts |
2 |
|
Machinery |
2 MAN R8V40/54 diesels |
|
Power, h. p. |
8600 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
10000(19) |
|
Armament |
1 x 1 - 57/40 Mk 6, 1 helicopter (Alouette?) |
|
Electronic equipment |
Ægir: 2x nav. radars Týr: 2x nav. radars, Simrad sonar |
|
Complement |
22 |
Project history: Although built 10 years apart, these two ships are nearly identical.
Modernizations: 1989-1990, both: - 1 x 1 - 57/40; + 1 x 1 - 40/60 Mk 3, RIB with articulating crane for handling
1994, both: - 2x nav. radars; + Sperry Rasterscan, AWS-6 radars
1997, both: helicopter deck was extended (for the using of Dauphin II helicopter), hull beneath it was plated
Naval service: No significant events.

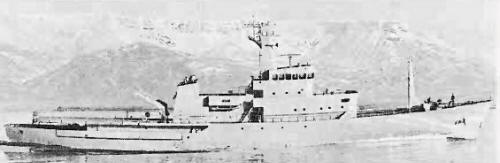

Ægir 1969

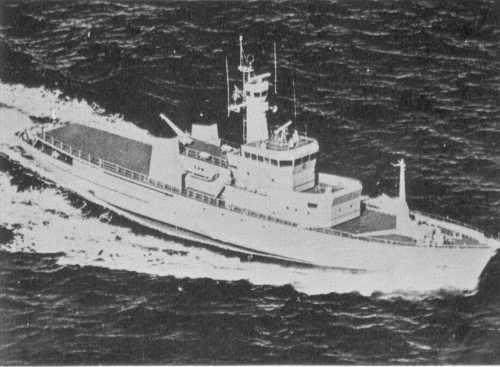

Týr 1980

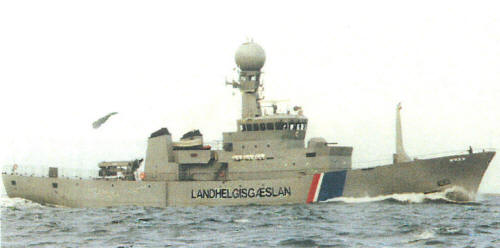

Ægir 1997
© Ivan Gogin, 2016-19
