Óðinn 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Óðinn | Ålborg Vaerft, Denmark | 1.1959 | 9.1959 | 1/1960 | stricken 2006 |
|
Displacement standard, t |
910 |
|
Displacement full, t |
1000 |
|
Length, m |
63.7 oa 56.6 pp |
|
Breadth, m |
10.0 |
|
Draught, m |
4.80 |
|
No of shafts |
2 |
|
Machinery |
2 Burmeister & Wain diesels |
|
Power, h. p. |
5050 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 10000(18) |
|
Armament |
1 x 1 - 57/40 Mk 6 |
|
Electronic equipment |
2x radars |
|
Complement |
19 |
Project history: Patrol vessel.
Modernizations: 1975: + hangar, helicopter deck, 1 helicopter, antirolling tanks were fitted
1989: - helicopter; + articulated crane for RIB, RIB
1990: - 1 x 1 - 57/40, 2 radars; + 1 x 1 - 40/60 Mk 3, 2 Sperry Rasterscan radars
Naval service: No significant events.

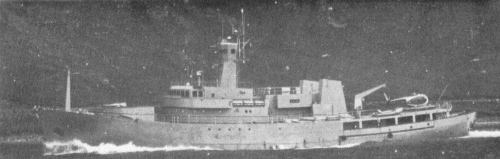

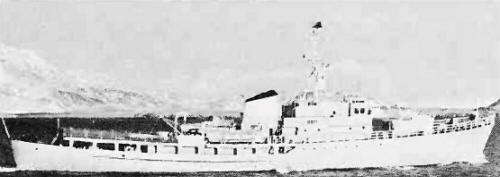

Óðinn 1967
Óðinn 1976

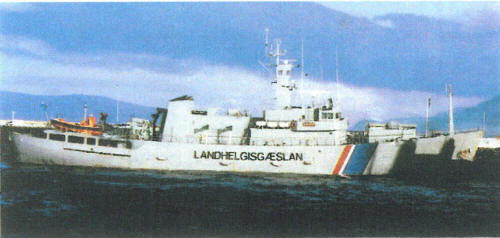

Óðinn 2002
