Names |
T80 - 86 |
|
Builders |
IAI, Ramta, Israel: T80, 81 Vasco SYd, Goa: T82-86 |
|
Completed |
1998: T80 1999: T81 2003: T82 2004: T83 2005: T84 2018: T85, 86 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): T80 - 86 |
|
Displacement standard, t |
48 |
|
Displacement full, t |
60 |
|
Length, m |
21.6 pp 25.4 oa |
|
Breadth, m |
5.50 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
T80, 81, 83, 84: 3 MTU 12V396 TE94 diesels T82: 3 MTU 8V396 TE94 diesels |
|
Power, h. p. |
4570 |
|
Max speed, kts |
46 |
|
Fuel, t |
diesel oil |
|
Armament |
1 x 1 - 25/75 Typhoon, 2 x 1 - 7.6/90 |
| Electronic equipment | Koden radar, MSIS e/o system |
|
Complement |
9 |

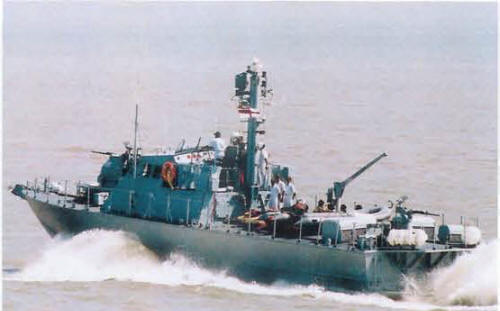

Project history: Israeli Super-Dvora class, intended to replace SDB Mk 2 boats.
Modernizations: None.
Naval service: No significant events.
2001
