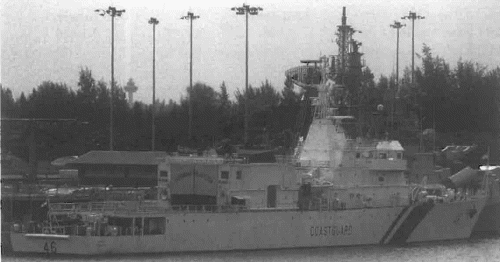

Sankalp 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| संकल्प [Sankalp] | 46 | Goa SYd | 17.7.2004 | 28.4.2006 | 20.5.2008 | in service (2019) | |
| सम्राट [Samrat] | 47 | Goa SYd | 5/2006 | 2.7.2007 | 21.1.2009 | in service (2019) |
|
Displacement standard, t |
1930 |
|
Displacement full, t |
2250 |
|
Length, m |
105.0 |
|
Breadth, m |
12.9 |
|
Draught, m |
3.60 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 16PA6B STC diesels |
|
Power, h. p. |
20970 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
6500(12) |
|
Armament |
2 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Chetak) |
|
Sensors |
Raytheon surface search, 2x nav. radars, e/o system |
|
Complement |
106 |
Project history: New class of patrol craft authorized in 1999. Intended for coastal patrol, fisheries protection, search and rescue duties, etc.
Modernizations: None.
Naval service: No significant events.
Sankalp 2009
