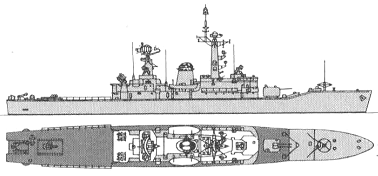

Udaygiri 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| नीलगिरि [Nilgiri] | F33 | Mazagon Docks, Bombay | 10.1966 | 23.10.1968 | 3.6.1972 | stricken 5.1996 | |
| हिमगिरि [Himgiri] | F34 | Mazagon Docks, Bombay | 1967 | 6.5.1970 | 23.11.1974 | stricken 5.2005 | |
| उदयगिरि [Udaygiri] | F35 | Mazagon Docks, Bombay | 14.9.1970 | 24.10.1972 | 18.2.1976 | stricken 8.2007 | |
| दुनागिरि [Dunagiri] | F36 | Mazagon Docks, Bombay | 1.1973 | 9.3.1974 | 5.5.1977 | stricken 10.2010 |
|
Displacement standard, t |
2682 |
|
Displacement full, t |
2962 |
|
Length, m |
113.4 |
|
Breadth, m |
13.1 |
|
Draught, m |
4.27 |
|
No of shafts |
2 |
|
Machinery |
2 Babcock & Wilcox boilers, 2 Bhopal geared steam turbines sets |
|
Power, h. p. |
30000 |
|
Max speed, kts |
30 |
|
Fuel, t |
oil 500 |
|
Endurance, nm(kts) |
4500(12) |
|
Armament |
F33: 1 x 4 Sea Cat GWS22 SAM (16 Sea Cat), 1 x 2 - 120/45 Mk 6, 2 x 1 - 20/70 Mk 10, 1 x 3 - 305 Limbo Mk 10 ASWRL, 1 helicopter (Alouette III/Chetak) F34-36: 2 x 4 Sea Cat M-4 SAM (32 Sea Cat), 1 x 2 - 120/45 Mk 6, 2 x 1 - 20/70 Mk 10, 1 x 3 - 305 Limbo Mk 10 ASWRL, 1 helicopter (Alouette III/Chetak) |
|
Sensors |
F33: type 965M, type 993, type 978, 2x type 903 radars, type 184M, type 199 sonars, UA8/9, type 667 ECM suites F34: Decca 1226, ZW-06, RALW-02, M44, 2x M45 radars, type 184M, type 199 sonars, UA8/9, type 667 ECM suites F35, 36: Decca 1226, ZW-06, RALW-02, M44, 2x M45 radars, type 184M sonar, UA8/9, type 667 ECM suites |
|
Complement |
410 |
Project history: Although originally intended to be repeats of the Leander design, progressive improvements have been made. Only Nilgiri had British electronics; the other three had Dutch Signaal radars built under licence by Bharath Electronics in India, and all but Nilgiri had M-4 directors for the Seacat SAMs. The Alouette III helicopter was too long for the original Leander hangar and so a telescoping type was fitted.
Modernizations: late 1980s, all: + G738 torpedo decoy
late 1980s, Himgiri: - type 184M sonar; + APSOH sonar
early 1990s, Nilgiri: - type 184M, type 199 sonars; + SQS-505, SQS-502, SQS-505VDS sonars
early 1990s, Udaygiri, Dunagiri: - type 184M sonar; + SQS-505, SQS-502, SQS-505VDS sonars
early 1990s, Himgiri: - type 199 sonar; + SQS-502, SQS-505VDS sonars
early 1990s, all: - UA8/9, type 667 ECM suites; + Ajanta-P ECM suite
late 1990s, Himgiri, Udaygiri, Dunagiri: - 2 x 4 Sea Cat GWS22 SAM, 2x M45 radars; + 2 x 2 - 30/71 AK-230, Cutlass ECM suite
late 1990s, Udaygiri: - SQS-505 sonar; + APSOH sonar
Naval service: Dunagiri suffered a dockyard fire 10.11.1999

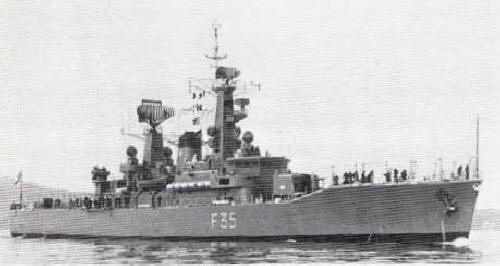

Udaygiri 1977
