| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| L411 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L412 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L413 | USA | 1971 // 1.2007 | in service (2019) | ||||
| L414 | USA | 1971 // 1.2007 | in service (2019) |
|
Displacement standard, t |
56 |
|
Displacement full, t |
121 |
|
Length, m |
22.4 |
|
Breadth, m |
6.43 |
|
Draught, m |
1.40 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors 6-71 diesels |
|
Power, h. p. |
590 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
150(12) |
|
Armament |
2 x 1 - 12.7/90 |
|
Military load |
150 troops or 60 t of cargo |
| Electronic equipment | nav. radar |
|
Complement |
5 |
Project history: USN LCM(8) craft, transferred aboard LPD Trenton.
Modernizations: None.
Naval service: No significant events.

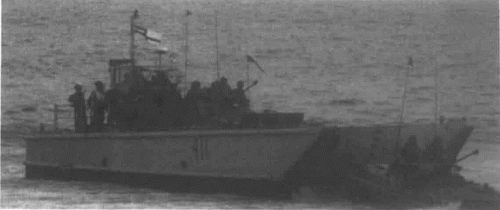

L411 2010
