Magar 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| मगर [Magar] (ex-Avenger, ex-LST3011) | L3011, 1975- L11 | Harland & Wolff, Belfast, UK | 8.1944 | 12.2.1945 | 8.1945 // 1951 | BU 1988 |
|
Displacement standard, t |
2300 light |
|
Displacement full, t |
4980 |
|
Length, m |
105.9 |
|
Breadth, m |
16.8 |
|
Draught, m |
3.79 deep load |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
5500 |
|
Max speed, kts |
13.5 |
|
Fuel, t |
oil 1400 |
| Endurance, nm(kts) | 8000(11) |
|
Armament |
2 x 2 - 40/60 Mk 5, 2 x 2 - 20/70 Mk 5, 2 x 1 - 20/70 Mk 3 |
| Military load | 5 LCA, 1 LCT(6), 15 40t or 20 25t tanks, 14 3t trucks, 170 troops |
|
Electronic equipment |
presumably nav. radar |
|
Complement |
111 |
Project history: Former British LST(3) class tank landing ship.
Modernizations: None.
Naval service: No significant events.

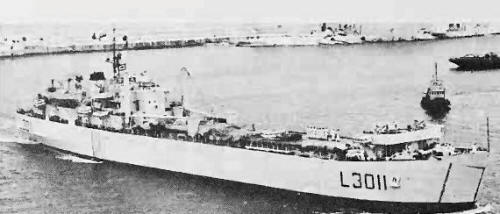

Magar 1964
