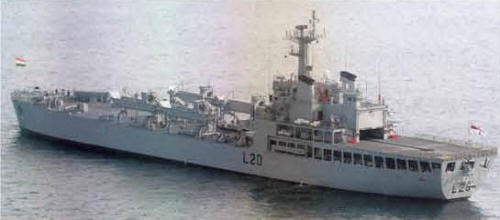

Magar 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| मगर [Magar] | L20 | Garden Reach, Calcutta | 6.11.1984 | 15.7.1987 | in service (2019) | ||
| घरिअल [Gharial] | L23 | Garden Reach, Kolkata | 1.4.1991 | 14.2.1997 | in service (2019) |
|
Displacement standard, t |
3200 |
|
Displacement full, t |
5655 |
|
Length, m |
120.0 pp 124.8 oa |
|
Breadth, m |
17.5 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
L20: 2 SEMT-Pielstick 8PC2 V400 diesels L23: 2 SEMT-Pielstick 12PA6 V280 diesels |
|
Power, h. p. |
8560 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 420 |
|
Endurance, nm(kts) |
3000(14) |
|
Armament |
4 x 1 - 40/60 Mk 3, 2 x 18 - 140 WM-18 RL, 1 helicopter (Sea King) |
|
Military load |
4 LCVP, 15 tanks or 750 t cargo, 500 troops |
|
Electronic equipment |
2x Bharat, nav. radars, Ajanta ECM suite, 2x decoy RL |
|
Complement |
136 |
Project history: Based on British Sir Lancelot design.
Modernizations: None.
Naval service: No significant events.
Magar 2006
