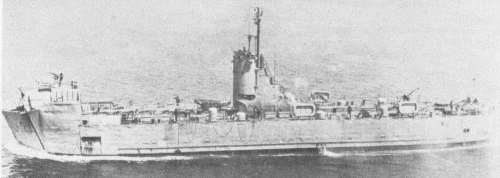

Sheva 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| שבא [Sheva] (ex-LSM...) | F91 | USA | 1944-46 // 1970 | stricken 1984 | |||
| אופיר [Ofir] (ex-LSM...) | F93 | USA | 1944-46 // 1970 | stricken 1984 | |||
| תרשיש [Tarshish] (ex-LSM...) | F95 | USA | 1944-46 // 1970 | stricken 1984 |
|
Displacement standard, t |
520 |
|
Displacement full, t |
1095 |
|
Length, m |
59.9 wl 62.0 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
landing: 1.07 fore, 2.13 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
12.5 - 13.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4900 (12) |
|
Armament |
1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10 |
| Military load |
5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | radar |
| Complement | 60 |
Project history: Former USN LSM class medium landing ships, purchased from merchant service.
Modernizations: None.
Naval service: No significant events.
