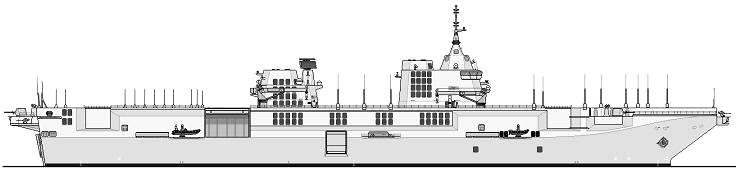

Trieste
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Trieste | Fincantieri, Castellammare di Stabia | 20.2.2018 | 2019 | 2022 | building (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
33000 |
|
Length, m |
213.4 pp 245.0 oa |
|
Breadth, m |
36.0 |
|
Draught, m |
9.01 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 Rolls-Royce MT30 gas turbines / 2 MAN 20V32/44CR diesels / 4 MAN 9L32/44CR diesel-generators, 2 electric motors |
|
Power, h. p. |
102000 / 32000 / 6040 |
|
Max speed, kts |
25 / 18 / 10 |
|
Fuel, t |
gas turbine / diesel oil |
| Endurance, nm(kts) | 7000(16) |
|
Armament |
2 x 8 SYLVER A50 SAM (VLS, 16 Aster-15/30 or 32 CAMM ER) (fitted for), 3 x 1 - 76/62 OTO-Melara Strales, 3 x 1 - 25/80 KBA25/80, 12 aircraft (12 AW101 or (6 F-35B Lightning, 6 AW129D)) |
| Military load | 4 LCU or 1 LCAC, 604 troops, vehicles, cargo |
|
Electronic equipment |
AESA 3D DBR 4FF (X-band), Power Shield AESA LRR, SPN-720 radars, Black Snake sonar, 2x ODLS-20 decoy RL, SADOC Mk 4 CCS |
|
Complement |
460 |
Project history: Amphibious assault ship, replacement for the San Giorgio and San Marco. Ship has 50.0x15.0m well deck for 1 LCAC or 4 60t LCU, 55.0x19.0m vehicle parking deck and 107.0x21.0m aviation hangar.230.0x36.0m flight deck has 9 landing spots for helicopters.
Modernizations: None.
Naval service: No significant events.
© Ivan Gogin, 2019
