| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fort Charles | P7 | Teledyne Sewart, Berwick, USA | 7/1974 | 1974 | stricken ~2006-08 |
|
Displacement standard, t |
|
|
Displacement full, t |
103 |
|
Length, m |
31.5 |
|
Breadth, m |
5.70 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB90 diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1200(18) |
|
Armament |
1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Sperry 4016 radar |
|
Complement |
16 + 24 troops |
Project history: Can carry 24 soldiers or served as an 18-bed floating infirmary.
Modernizations: 1981: lengthened (109/130t, 34.5x6.70x2.10m)
Naval service: No significant events.

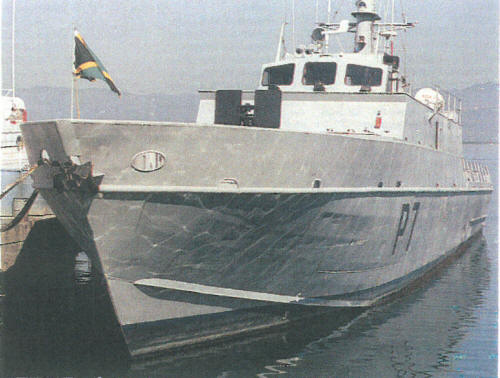

Fort Charles 1999
