Miura 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| みうら [Miura] | LST4151 | IHI, Tokyo | 26.11.1973 | 13.8.1974 | 25.1.1975 | stricken 4.2000 | |
| おじか [Ojika] | LST4152 | IHI, Tokyo | 10.6.1974 | 4.9.1975 | 22.3.1976 | stricken 8.2001 | |
| さつま [Satsuma] | LST4153 | IHI, Tokyo | 26.5.1975 | 12.5.1976 | 17.2.1977 | stricken 6.2002 |
|
Displacement standard, t |
2000 |
|
Displacement full, t |
3200 |
|
Length, m |
94.0 pp 98.0 oa |
|
Breadth, m |
14.0 |
|
Draught, m |
3.00 |
|
No of shafts |
2 |
|
Machinery |
2 Kawasaki-MAN V8V22/30AMTL diesels |
|
Power, h. p. |
4400 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 76/50 Mk 33, 1 x 2 - 40/60 Mk 1 mod. 2 |
|
Military load |
2 LCVP, 2 LCM(6), 10 tanks or 1800 t cargo, 200 troops |
|
Electronic equipment |
4151: OPS-18, OPS-14, FCS-1B radars 4152, 4153: OPS-18, OPS-14, Mk 34 radars |
|
Complement |
118 |
Project history: Two LCVPs were slung under davits, and a travelling gantry handled two LCMs carried on the foredeck.
Modernizations: None.
Naval service: No significant events.

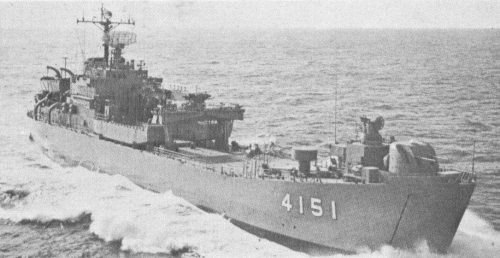

Miura 1976
