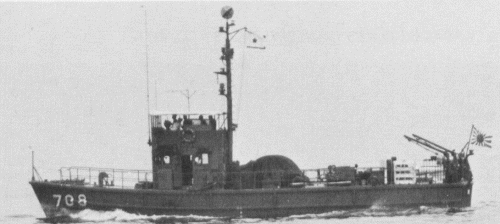

7-go 1980
|
Names |
MSB707-712 1号-6号 [7-go-12-go] |
|
Builders |
Hitachi, Kanagawa: MSB707, 710, 711 NKK, Tsurumi: MSB708, 709, 712 |
|
Commissioned |
1973: MSB707, 708 1974: MSB709, 710 1975: MSB711, 712 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1992: MSB707, 708 1996: MSB709, 710 1997: MSB711, 712 |
|
Displacement standard, t |
50 |
|
Displacement full, t |
58 |
|
Length, m |
22.5 |
|
Breadth, m |
5.40 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
2 Mitsubishi 4ZV20MA/MC diesels |
|
Power, h. p. |
480 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
53-shiki mechanical or A Mk 6b acoustic sweeping gear |
|
Sensors |
none |
|
Complement |
10 |
Project history: Wooden minesweeping boats built as replacement for older 1-go class.
Modernizations: None.
Naval service: No significant events.
8-go 1979
