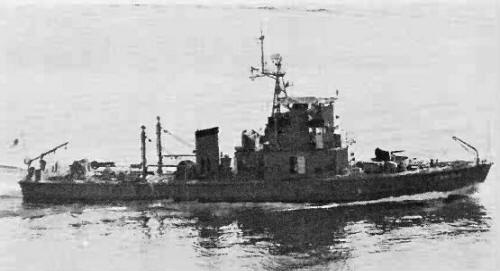

Atada 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| あただ [Atada] | MSC601 | Hitachi Zosen, Kanagawa | 6.1955 | 12.3.1956 | 4.1956 | auxiliary 3.1972 | |
| いつき [Itsuki] | MSC602 | NKK, Tsurumi | 6.1955 | 12.3.1956 | 6.1956 | auxiliary 3.1972 |
|
Displacement standard, t |
240 |
|
Displacement full, t |
260 |
|
Length, m |
37.5 |
|
Breadth, m |
6.80 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
MSC601: 2 Mersedes-Benz MB820B diesels MSC602: 2 Mitsubishi YV10ZC15/20 diesels |
|
Power, h. p. |
1200 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 20/70 Mk 10, mechanical, magnetic minesweeping gear |
|
Sensors |
SPS-10 radar, UQS-1D sonar |
|
Complement |
33 |
Project history: Small coastal minesweepers. Both built of wood and lightweight metals.
Modernizations: none
Naval service: Both became diving tenders and deleted in 1980 (Atada) and 1978 (Itsuki).
Atada 1972
