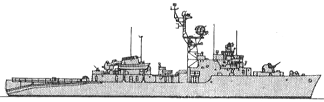

Soya 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| そうや [Soya] | MMC951 | Hitachi, Maizuru | 9.7.1970 | 31.3.1971 | 30.9.1971 | stricken 11.1996 |
|
Displacement standard, t |
2150 |
|
Displacement normal, t |
3300 |
|
Length, m |
99.0 |
|
Breadth, m |
15.0 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
4 Kawasaki-MAN V6V22/30ATL diesels |
|
Power, h. p. |
6400 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 2 - 76/50 Mk 33, 2 x 1 - 20/70 Mk 10, 2 x 3 - 324 68-shiki TT, 226 mines, helicopter deck |
| Electronic equipment | OPS-14, OPS-17, FCS-1B radars, SQS-11A, ZQS-1B sonars |
|
Complement |
180 |
Project history: Soya had six mine rails, four in the stern, and two externally. She was also equipped to operate a minesweeping helicopter, although there was no hangar. Ship can also be used as flagship of minesweeping flotillas (minesweeper support ship).
Modernizations: none
Naval service: No significant events.

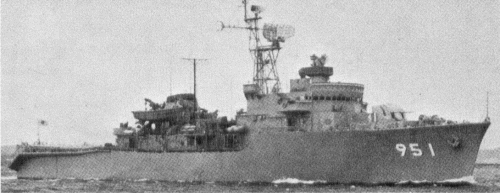

Soya 1974
