Names |
أل سلمي [Al Salemi] أل موبركي [Al Mubaraki] أمن [Aman] ميمون [Maymoon] مرزوك [Marzook] مشور [Mashoor] مورشد [Murshed] وثه [Wathah] أل شورتي [Al Shurti] إنتسر [Intisar] |
|
Builders |
Thornycroft, Southampton, UK: Al Salemi, Al Mubaraki Vosper Thornycroft, Southampton, UK: Aman, Maymoon, Marzook, Mashoor, Murshed, Wathah, Al Shurti, Intisar |
|
Commissioned |
9/1966: Al Salemi, Al Shurti 1968: Aman, Maymoon 1969: Marzook, Mashoor 1970: Murshed, Wathah 1972: Al Shurti, Intisar |
|
Losses |
Al Salemi (2.8.1990), Al Shurti (2.8.1990), Aman (2.8.1990), Maymoon (2.8.1990), Marzook (2.8.1990), Mashoor (2.8.1990), Murshed (2.8.1990), Wathah (2.8.1990), Al Shurti (2.8.1990), Intisar (2.8.1990) |
|
Transfers |
none |
| Discarding | none |
|
Displacement standard, t |
40 |
|
Displacement full, t |
|
|
Length, m |
25.5 |
|
Breadth, m |
4.70 |
|
Draught, m |
1.40 |
|
No of shafts |
2 |
|
Machinery |
2 Rolls-Royce V8 marine diesels |
|
Power, h. p. |
1340 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 700(15) |
|
Armament |
1 x 1 - 7.6/90 |
| Electronic equipment |
Decca 202 radar |
|
Complement |
12 |
Project history: Thornycroft 78ft type coastal patrol boats. Welded steel hulls, aluminium alloy superstructures. May be armed with 1 40mm gun.
Modernizations: None.
Naval service: All were captured by Iraqi forces in August 1990.

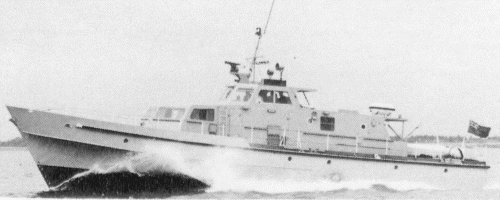

Intisar 1972
