| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| هدية [Hadiya] | Vosper Private, Singapore | 1979 | captured by Iraq 2.8.1990 (هدية [Hadiya]) | ||||
| شريف [Ceriff] | Vosper Private, Singapore | 1979 | captured by Iraq 2.8.1990 (شريف [Ceriff]) | ||||
| الجهرا [Al Jahra] | Vosper Private, Singapore | 1979 | captured by Iraq 2.8.1990 (الجهرا [Al Jahra]) |
|
Displacement standard, t |
|
|
Displacement full, t |
320 |
|
Length, m |
32.3 |
|
Breadth, m |
7.50 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
2 Rolls-Royce C8M-410 diesels |
|
Power, h. p. |
750 |
|
Max speed, kts |
9.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(9) |
|
Armament |
none |
| Military load | 170 t cargo |
| Electronic equipment |
radar |
|
Complement |
Project history: Unusual design with stern ramp.
Modernizations: None.
Naval service: All were captured by Iraqi forces during invasion in August 1990.

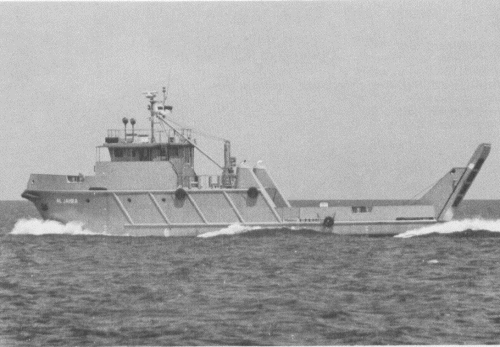

Al Jahra 1979
