Tobruk 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| طبرق [Tobruk] | C01, 1983- 411 | Vosper, Portsmouth, UK | 22.2.1965 | 29.7.1965 | 30.3.1966 | hulk 1989 |
|
Displacement standard, t |
440 |
|
Displacement full, t |
500 |
|
Length, m |
54.0 |
|
Breadth, m |
8.70 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman Ventura 16YJCM diesels |
|
Power, h. p. |
3800 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 60 |
| Endurance, nm(kts) |
2900(14) |
|
Armament |
1 x 1 - 102/40 Mk 23 LA, 4 x 1 - 40/60 Mk 9, 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 63 |
Project history: Type 1 corvette, had apartments for use as state yacht, Vosper anti-roll fins and air conditioning.
Modernizations: 1970: - 2 x 1 - 40/60
Naval service: No significant events.

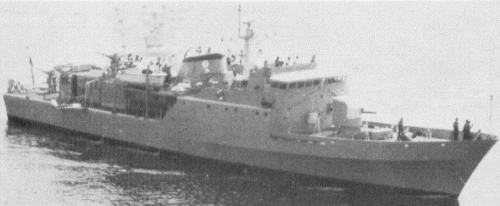

Tobruk 1971
