Brendan Simbwaye 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Brendan Simbwaye | P11 | INACE, Fortaleza, Ceará, Brazil | 25.2.2005 | 1.5.2008 | 2.6.2009 | in service (2020) |
|
Displacement standard, t |
217 |
|
Displacement full, t |
263 |
|
Length, m |
42.5 pp 46.5 oa |
|
Breadth, m |
7.50 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V396 TB94 diesels |
|
Power, h. p. |
5560 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil 23 |
|
Endurance, nm(kts) |
2200(12) |
|
Armament |
1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 GAM-B01 |
|
Electronic equipment |
Decca 1290A radar |
|
Complement |
31 |
Project history: Brazilian Graúna class, ordered in 2003. Used for fisheries patrol duty.
Modernizations: None.
Naval service: No significant events.

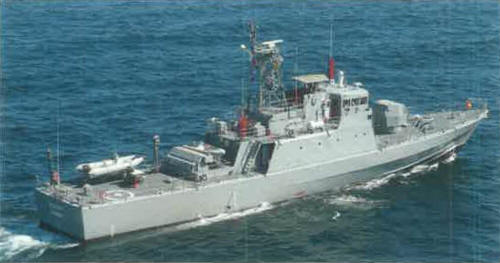

Brendan Simbwaye 2010
