PUKAKI patrol boats (1975)

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Pukaki	P3568		Brooke Marine, Lowestoft, UK		1.3.1974	24.2.1975	stricken 1991
Rotoiti	P3569		Brooke Marine, Lowestoft, UK		8.3.1974	24.2.1975	stricken 1991
Taupo	P3570		Brooke Marine, Lowestoft, UK		25.7.1974	29.7.1975	stricken 1991
Hawea	P3571		Brooke Marine, Lowestoft, UK		9.9.1974	29.7.1975	stricken 1991

Displacement standard, t

105

Displacement full, t
135

Length, m
32.6

Breadth, m
6.10

Draught, m
1.70 hull 3.50 max

No of shafts
2

Machinery

2 Ruston-Paxman 12YCJM diesels

Power, h. p.

3000

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts) 2500(12)

Armament

1 x 2 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 1 - 7.6/90

Electronic equipment Decca 916 radar

Complement
21

Project history: Patrol boats.

Modernizations: None.

Naval service: No significant events.

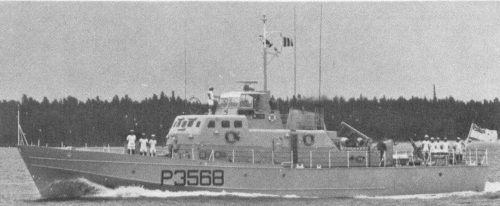

Pukaki 1976

Displacement standard, t	105
Displacement full, t	135
Length, m	32.6
Breadth, m	6.10
Draught, m	1.70 hull 3.50 max
No of shafts	2
Machinery	2 Ruston-Paxman 12YCJM diesels
Power, h. p.	3000
Max speed, kts	24
Fuel, t	diesel oil
Endurance, nm(kts)	2500(12)
Armament	1 x 2 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 M29 mortar), 2 x 1 - 7.6/90
Electronic equipment	Decca 916 radar
Complement	21

ROYAL NEW ZEALAND NAVY (NEW ZEALAND)
