Makurdi 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Makurdi | P167 | Brooke Marine, Lowestoft, UK | 21.3.1974 | 14.8.1974 | discarded 1990s, restored 2010, in service (2019) | ||
| Hadeja | P168 | Brooke Marine, Lowestoft, UK | 25.5.1974 | 14.8.1974 | discarded 1990s, restored 2014, in service (2019) | ||
| Jebba | P171 | Brooke Marine, Lowestoft, UK | 1.12.1976 | 29.4.1977 | discarded 1990s | ||
| Oguta | P172 | Brooke Marine, Lowestoft, UK | 17.1.1977 | 29.4.1977 | discarded 1990s |
|
Displacement standard, t |
115 |
|
Displacement full, t |
145 |
|
Length, m |
32.6 |
|
Breadth, m |
6.10 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 Ruston-Paxman YJCM diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 18 |
|
Endurance, nm(kts) |
2300(12) |
|
Armament |
2 x 1 - 40/60 Mk 9 |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
24 |
Project history: Large patrol boats.
Modernizations: 1981, all: - 2 x 1 - 40/60; + 2 x 2 - 30/75 Emerlec EX-30
Naval service: No significant events.

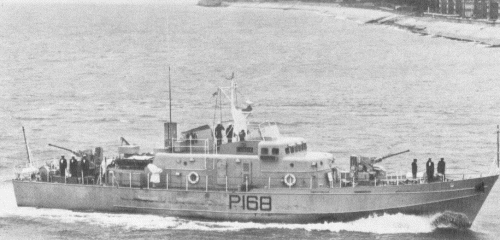

Hadeja 1974
