Names |
P247 Onitsha P255 Ikot-Abasi P256 Benin P257 |
|
Builders |
Israeli SYds, Be'er-Sheva, Israel: P247, 255-257 |
|
Commissioned |
2009: P247, 255 2012: P256 2013: P257 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P247, 255-257 |
|
Displacement standard, t |
50 |
|
Displacement full, t |
56 |
|
Length, m |
20.0 pp 24.8 oa |
|
Breadth, m |
6.00 |
|
Draught, m |
1.21 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 Deutz-MWM TBD604BV16 diesels |
|
Power, h. p. |
5000 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(32) |
|
Armament |
2 x 2 - 12.7/90, 2 x 1 - 12.7/90 |
|
Sensors |
Furuno radar |
|
Complement |
15 |
Project history: Shaldag Mk II class. Aluminium construction.
Modernizations: None.
Naval service: No significant events.

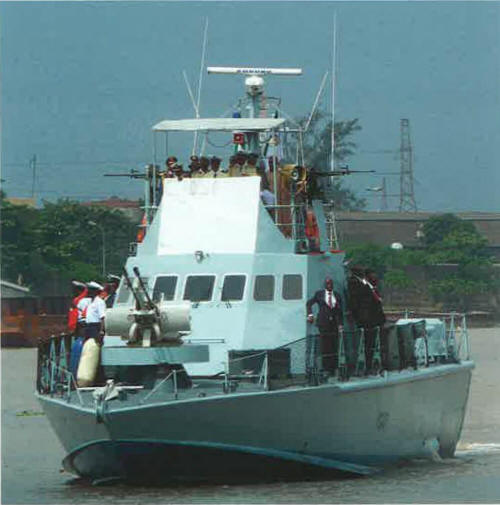

Onitsha 2010
