Names |
P25 P28 P31 P241-246 P248-254 P260-262 3 other units |
|
Builders |
STM, Singapore: P25, 28, 31, 241-246, 248-254, 260-262, 3 other units |
|
Commissioned |
2008: P25, 28, 31, 1 other unit 2011: P248-254 2013: P260-262 2014: P241-246 2009-13: 2 other units |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P25, 28, 31, 241-246, 248-254, 260-262, 3 other units |
|
Displacement standard, t |
|
|
Displacement full, t |
21 |
|
Length, m |
16.5 pp 18.0 oa |
|
Breadth, m |
3.60 |
|
Draught, m |
0.95 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
45 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
250(35) |
|
Armament |
3 x 1 - 12.7/90 |
|
Sensors |
Furuno radar |
|
Complement |
6 |

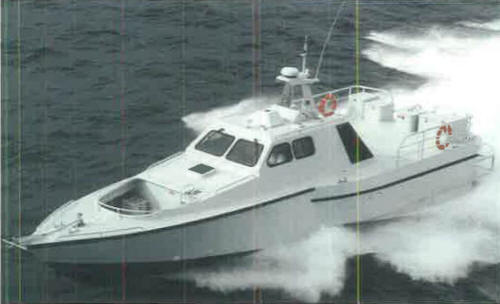

Project history: Suncraft Manta Mk IIASD (Manta III) class. Malaysian design. Intended to provide protection of offshore oil facilities.
Modernizations: None.
Naval service: No significant events.
2009
© Ivan Gogin, 2019
