Ambe 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| Ambe | L1312 | Howaldtswerke, Hamburg, West Germany | 3.3.1978 | 7.7.1978 | 11.5.1979 | in service (2019) | |
| Ofiom | L1313 | Howaldtswerke, Hamburg, West Germany | 15.9.1978 | 7.12.1978 | 7.1979 | in service (2019) |
|
Displacement standard, t |
1470 |
|
Displacement full, t |
1860 |
|
Length, m |
74.5 pp 86.9 oa |
|
Breadth, m |
14.0 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V956 TB92 diesels |
|
Power, h. p. |
6700 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(14) |
|
Armament |
1 x 1 - 40/70 Bofors 315, 2 x 1 - 20/90 GAM-B01 |
| Military load |
400 t cargo or 5 light tanks, 4 trucks, 220 troops |
| Electronic equipment | Decca 1226 radar |
|
Complement |
55 |
Project history: West German type 502 landing ships, not accepted by Bundesmarine. 700m² vehicle area has 75m length. Can carry up to 540 passengers on short routes.
Modernizations: None.
Naval service: No significant events.

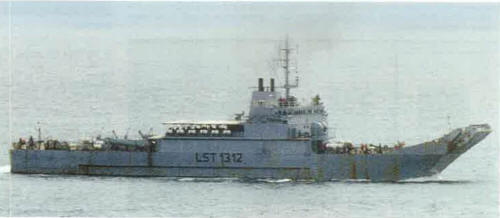

Ambe 1997
