Hauk 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Hauk | P986 | Bergens MV | 17.8.1977 | stricken 2008 | |||
| Ørn | P987 | Bergens MV | 19.1.1979 | stricken 2008 | |||
| Terne | P988 | Bergens MV | 13.3.1979 | stricken 2008 | |||
| Tjeld | P989 | Bergens MV | 25.5.1979 | stricken 2008 | |||
| Skarv | P990 | Bergens MV | 17.7.1979 | stricken 2008 | |||
| Teist | P991 | Bergens MV | 11.9.1979 | stricken 2008 | |||
| Jo | P992 | Bergens MV | 1.11.1979 | stricken 2008 | |||
| Lom | P993 | Bergens MV | 15.1.1980 | stricken 2008 | |||
| Stegg | P994 | Bergens MV | 18.3.1980 | stricken 2008 | |||
| Falk | P995 | Bergens MV | 30.4.1980 | stricken 2008 | |||
| Ravn | P996 | Westamarin, Alta | 20.5.1980 | stricken 2008 | |||
| Gribb | P997 | Westamarin, Alta | 10.7.1980 | stricken 2008 | |||
| Geir | P998 | Westamarin, Alta | 16.9.1980 | stricken 2008 | |||
| Erle | P999 | Westamarin, Alta | 10.12.1980 | stricken 2008 |
|
Displacement standard, t |
130 |
|
Displacement full, t |
155 |
|
Length, m |
36.5 |
|
Breadth, m |
6.30 |
|
Draught, m |
1.65 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB91 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
440(34) |
|
Armament |
6 x 1 Penguin Mk 2 SSM (6 Penguin Mk 2), 1 x 1 - 40/70 Bofors 564, 1 x 1 - 20/85 Mk 20 Rh202, 2 - 533 TT (Tp61) |
|
Electronic equipment |
2x Decca TM626 radars, TVT-300 e/o system, SQ3D/SF sonar, MSI80S CCS |
|
Complement |
22 |
Project history: Ordered in 1975.
Modernizations: 1992-1994, all: - 1 x 1 - 20/85; + 1 x 2 Simbad SAM (4 Mistral)
1999, Stegg; 2000, Jo; 2001, Teist; 2002-2004, Hauk, Ørn, Terne, Tjeld, Skarv, Lom, Falk, Ravn, Gribb, Geir, Erle: - MSI80S CCS; + 1 x 1 - 12.7/90, Vigy 20 e/o system, Argo ECM suite, SENIT2000 CCS
Naval service: No significant events.

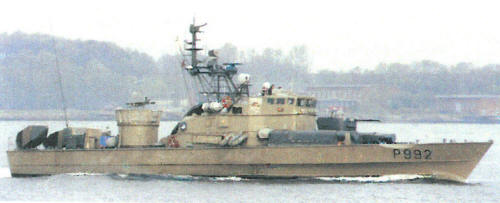

Jo 2003
