| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Reynøsund | A33, 1975- L4502 | Mjellem & Karlsen, Bergen | 1.1972 | diver support craft 1999, stricken 2005 | |||
| Sørøysund | A34, 1975- L4503 | Mjellem & Karlsen, Bergen | 5.1972 | stricken 2005 | |||
| Maursund | A35, 1975- L4504 | Mjellem & Karlsen, Bergen | 9.1972 | stricken 2005 | |||
| Rotsund | A36, 1975- L4505 | Mjellem & Karlsen, Bergen | 11.1972 | diver support craft 1999, stricken 2005 | |||
| Borgsund, 1995- Tjeldsund | A37, 1975- L4506 | Mjellem & Karlsen, Bergen | 2.1973 | stricken 2005 |
|
Displacement standard, t |
|
|
Displacement full, t |
590 |
|
Length, m |
51.4 |
|
Breadth, m |
10.3 |
|
Draught, m |
1.85 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
1350 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
3 x 1 - 20/90 Mk 20 Rh202, 120 mines instead of cargo |
| Military load |
5 - 7 tanks, 80 - 180 troops |
| Electronic equipment | Decca TM1226 radar |
| Complement | 9 |
Project history: Usual LCUs, home built. Modified version of Kvalsund class. Double-folding bow-ramp door and covered vehicle cargo well.
Modernizations: 1995-1997, all: diesels were replaced by 2 Deutz TBD234V12, 1350hp, speed max 11.5kts
1995-1997, Sørøysund, Maursund, Tjeldsund: were lengthened, superstructure was enlarged (850t full load, 60.5m length, 7 Leopard tanks, 200 troops)
Naval service: No significant events.

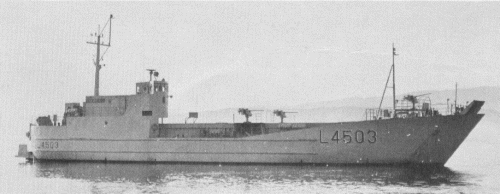

Sørøysund 1979

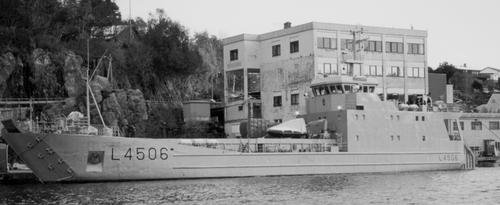

Tjeldsund 1997
