Capitán Ortiz 2000
|
Names |
P06 Capitán Ortiz (ex-FABG1) P07 Teniente Robles (ex-FABG2) |
|
Builders |
China SB, Kaohsiung: P06, 07 |
|
Completed |
1979 // 1994: P06, 07 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P06, 07 |
|
Displacement standard, t |
|
|
Displacement full, t |
45 |
|
Length, m |
22.9 |
|
Breadth, m |
5.49 |
|
Draught, m |
0.80 hull 1.82 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V331 TC92 diesels |
|
Power, h. p. |
2605 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700(32) |
|
Armament |
1 x 1 - 20/68 T75, 1 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 926 radar |
|
Complement |
10 |
Project history: Former prototype Taiwanese guided-missile patrol boats, with a design based on the Israeli Dvora class but with slightly different hullform. Transferred without missiles.
Modernizations: None.
Naval service: No significant events.

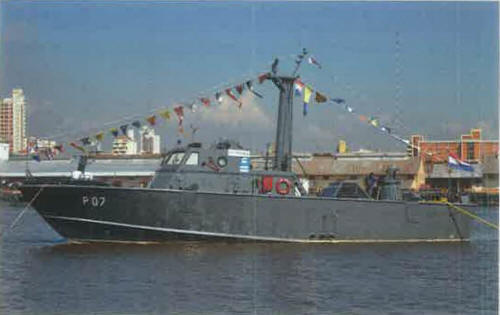

Teniente Robles 2011
