sister-ship Amapá 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Itaipú | P05 | Arsenal de Marinha do Rio de Janeiro, Brazil | 3.3.1983 | 16.3.1984 | 2.4.1985 | in service (2019) |
|
Displacement standard, t |
220 light |
|
Displacement full, t |
384 |
|
Length, m |
45.0 pp 46.3 oa |
|
Breadth, m |
8.45 |
|
Draught, m |
1.42 |
|
No of shafts |
2 |
|
Machinery |
2 MAN V6 V16/18TL diesels |
|
Power, h. p. |
1824 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(11) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90, 2 x (1 - 12.7/90 + 1 - 81/12 M29), helicopter deck |
| Military load | 2 LCVP |
| Electronic equipment | Furuno radar |
|
Complement |
40 |
Project history: Brazilian Roraima class river gunboat. Helicopter deck can accommodate one AS.350 helicopter.
Modernizations: None.
Naval service: No significant events.

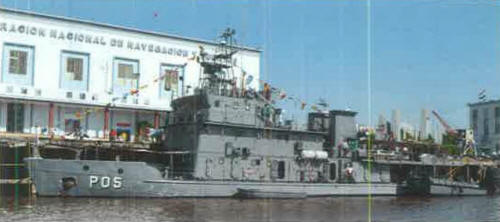

Itaipú 2011
© Ivan Gogin, 2019
